| Nombre De La Marca: | SUCLAB |
| Número De Modelo: | HZJT0010 |
| Cuota De Producción: | 10 JUEGOS |
| Precio: | Negociaction |
| Condiciones De Pago: | T/T, L/C, D/A, D/P |
| Capacidad De Suministro: | mes de 1000 PC |
Strong practicality
The all-steel reagent rack of Lab Furniture with Drawersis reasonably designed, beautiful and practical. Specially customize reagent racks of different widths and heights according to work needs.
Good flexibility
Flexibility is the key to the laboratory furniture system. Our company's planning and design can match your laboratory layout and make full use of every storage space.
The countertop of the experimental table: 12.7mm thick solid core physicochemical board, resistant to strong acids and alkalis, and resistant to high temperatures.

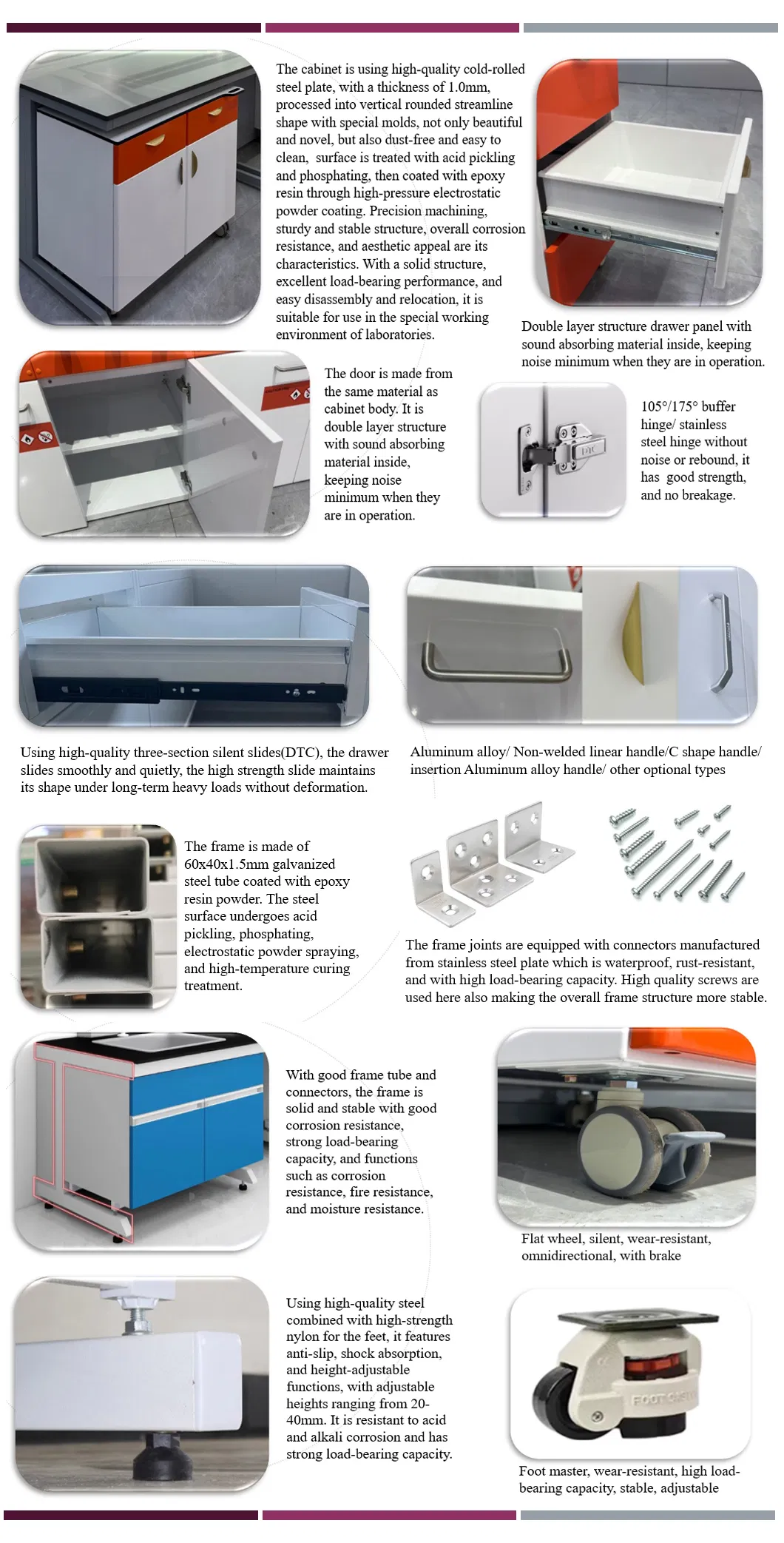

Cabinet body: The cabinet body is made of 1.0mm thick high-quality cold-rolled steel plate, and the surface is sprayed with epoxy resin, and the average thickness of the plastic powder film is ≥70μm. There is a layer of movable partition in the double-door cabinet to place equipment and other things. The partition is made of 1.0mm thick high-quality cold-rolled steel plate, which can withstand a load of 400kg/m2. The bottom plate of the hanging cabinet is a whole-piece design, supplemented by a double-layer hollow structure, which is convenient for cabinet cleaning and maintains a good appearance. The surface treatment of the steel plate is phosphated and then sprayed.
Cabinet surface: The door and drawer surface are made of 1.0mm thick high-quality cold-rolled steel plate. The structure is double-layer hollow. Hanging cabinet or partition, the layer plate is made of 1.0mm thick high-quality cold-rolled steel plate.
Slide rail: imported three-section ball slide rail, length 450mm, made of ≥1mm black zinc-plated steel sheet, with a load capacity of ≥50kg.
Handle: cabinet door and drawer surface integrated long handle.
Foot: metal nylon cast plastic base, which can be dispatched 30mm
Hinge: Italian zinc alloy hinge, with an angle of 175 degrees, opening and closing more than 100,000 times.
Water basin: PP laboratory water basin
Faucet: Taiwan Taixiong faucet.
Power supply: The power socket is a TCL socket, and the national standard power cord.
Reagent rack: The frame reagent rack is suitable for the central platform and side platform. It can be hung as needed. The movable shelf is made of high-quality tempered glass, and stainless steel guardrails are installed on the edge to prevent items from falling.
Drip rack: The bottom plate is an imported solid-core physical and chemical plate. The plug is a φ10mm acid-proof rod.
Its main characteristics are:
Lab Furniture with Drawers Product counmtertop - 12.7mm thick solid phnolic resin plate countertop, steel cabinet body, steel reagent rack.
Product structural characteristics - the overall structure of the all-steel structure laboratory table is compact, beautiful and easy to keep clean. The overall structural strength and load-bearing capacity are good. The countertop of the experimental table is made of 12.7mm thick solid core physicochemical board, which has superior anti-corrosion properties, strong anti-slip and impact resistance. The cabinet of the experimental table is made of 1.0mm thick high-quality cold-rolled steel plate, all-steel - central experimental table with reagent rack
| Countertop | Option 1: 12.7/16/19/25mm phenolic resin board. Option 2: 16/19/20/25mm epoxy resin board. Option 3: 15/20/25mm ceramic board. Option 4: stainless steel, PP, Trespa and marble are all available. |
||||||||||||||||||
| Structure | Floor mounted, C-frame, H-frame and Mobile modular. | ||||||||||||||||||
| Size | Length*750mm*850mm, Length*1500mm*850mm, or customization. | ||||||||||||||||||
| Color | White, blue, grey or customized. | ||||||||||||||||||
| Cabinet/drawer material | Option 1: Using high-quality cold-rolled steel plate, with a thickness of 1.2mm, surface is treated with acid pickling and phosphating, then coated with epoxy resin through high-pressure electrostatic powder coating. Precision machining, sturdy and stable structure, overall corrosion resistance, and aesthetic appeal are its characteristics. With a solid structure, excellent load-bearing performance, and easy disassembly and relocation, it is suitable for use in the special working environment of laboratories. Option 2: Using high-pressure, moisture-proof, and impact-resistant 18mm thick high-quality melamine board, all sections are edged with an automatic edge banding machine. The edge banding material is 2mm thick high-quality PVC waterproof edge banding strip, which is hot-melted to integrate with the board, ensuring strong adhesion, good sealing, waterproofing, and lasting aesthetic appeal. All panels are connected with a detachable three-in-one connection, providing a stable structure, excellent load-bearing performance, easy disassembly, and relocation, making it suitable for use in the special working environment of laboratories. Option 3: Chipboard, MDF, plywood, HPL, PP and stainless steel are all available based on customer's needs and budget. please contact customer service for detailed information. |
||||||||||||||||||
| Door and drawer panel | Option 1: With the steel cabinets, the panel is double layer structure with sound absorbing material inside, keeping noise minimum when they are in operation. Option 2: With wooden type cabinets, the cabinet doors are made of the same material as the cabinet body, with all edges treated with high-quality PVC edge banding for waterproofing, and smooth chamfering on all four sides. (The cabinet surface color is chosen by the customer). |
||||||||||||||||||
| Cabinet size | 450mm/500mm/600mm/900mm/1000mm wide or customized | ||||||||||||||||||
| Main frame | 60x40x2.0/40x40x1.5mm/30x30x1.5mm galvanized steel pipe coated with epoxy resin powder, The joints are equipped with specialized connectors formed by cold-rolled steel plate stamping, making the overall frame structure more rational. Its load-bearing performance and stability are particularly strong; the steel surface undergoes acid pickling, phosphating, electrostatic powder spraying, and high-temperature curing treatment. It is solid and stable overall, with good corrosion resistance, strong load-bearing capacity, and functions such as corrosion resistance, fire resistance, and moisture resistance. | ||||||||||||||||||
| Available accessories | Numerous types of reagent shelf,wall mounted cabinet,sink,faucet,socket and other accessories are available, please contact customer service for details.
|
Q: What are the brand name of these Lab Furniture with Drawers product?
A: The brand name is SUCLAB.
Q: What are the model number of hese Lab Furniture with Drawer product
A: The model number is HZJT0010.
Q: Where are hese Lab Furniture with Drawer product manufactured?
A: The product is manufactured in China.
Q: Are assembly required forhese Lab Furniture with Drawer product?
A: Yes, some assembly may be required for this product.
Q: What materials are used in the construction of hese Lab Furniture with Drawer product?
A: The product is made of high-quality materials such as steel and durable laminate.
